Specifications
Two SMART TV portals (Android and Netrange)
OTA update (software update via the Internet)
Wide-angle LED display (alphatronicsView)
alphatronics Triple-Tuner (DVB-S2, DVB-T2, DVB-C Tuner HDTV)
CI+ slot for Pay-TV module
Shock-resistant DVD player
Integrated Bluetooth 5.0 module - transmit and receive
USB port / media player
100% pixel error-free LED panels (pixel error class 0)
Technical information
Screen size: 60 cm (24")
Display alphatronics wide angle 178/ 178 degree: LED display
Image format: 16:9 widescreen
Resolution: 1920 x 1080
Contrast ratio: 1000:1
Brightness value: 350 cd/m2
Response time: < 5 ms
Viewing angle: 178 H, 178 V
Tuner
PAL B/G, NTSC, SECAM
Triple tuner (DVB-S2, DVB-T2, H.265, DVB-C tuner - HDTV MPEG2/4)
Integrated quality level display (DVB-S2)
CI+ slot (Common Interface)
Electronic Programme Guide (EPG)
Favourites list
Parental control
Sound
Music output / Watt: 2x5 W
Integrated front speakers
Stereo sound
alphatronicsAUDIO+
alphatronicsSound
Bluetooth 5.0 module integrated
Pairing via OSD menu
Connections: TV tuner, 2x HDMI connection, AV in / AV out, Headphones (3.5 mm), YPbPR connection (3.5 mm), Digital Coaxial Out, RJ45 External WiFi antenna, 10.8 - 26 V DC Power supply, External power supply 100 - 240 V AC, 12 DC PhotoViewer: USB 2.0 connection / Media Player (PVR function can be retrofitted) DLNA/Miracast
DLNA/Miracast (PVR function can be retrofitted)
DVD player
DVD player integrated on the side
Formats: CD, DVD, VCD, MP3, DVD-R, DVD-RW, DivX, JPEG
Smart TV
Android 9.0 operating system
Netrange
LAN/WLAN connection
Kathrein control: yes, (option only models -K)
Equipment
Automatic station search memory
Max. TV programme positions: 999
Teletext TOP (100 pages)
Picture modes - number: 4
Sound modes - number: 5
Sleep timer
Graphic OSD menu (multilingual)
General
Power consumption: Operation < 22 W (max.), stand-by < 0.5 W
Weight: with base 4.2 kg, without base 3.9 kg

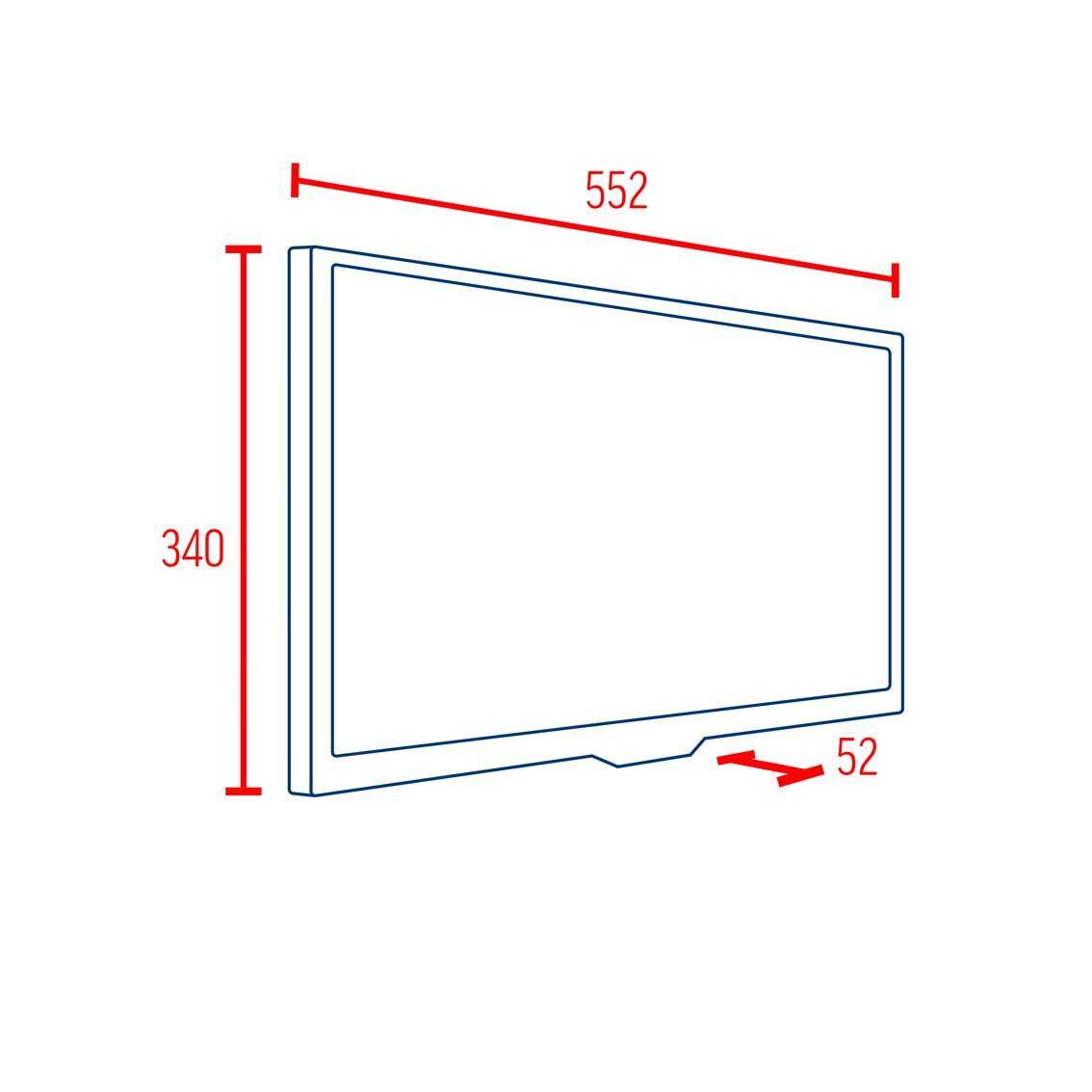

Dimensions (W x H x D in mm): with / w.o base: 552 x 370 x 154 / 552 x 340 x 54
Housing colour: brushed anthracite
HD Ready: yes
VESA standard: 100 x 100 mm
Energy efficiency class: F
On/off switch
Accessories: Remote control, DVB-T antenna AN5, power supply, YbPr adapter, AV adapter, car 12-volt cable, batteries, operating instructions
OTA update (software update via the Internet)
Wide-angle LED display (alphatronicsView)
alphatronics Triple-Tuner (DVB-S2, DVB-T2, DVB-C Tuner HDTV)
CI+ slot for Pay-TV module
Shock-resistant DVD player
Integrated Bluetooth 5.0 module - transmit and receive
USB port / media player
100% pixel error-free LED panels (pixel error class 0)
Technical information
Screen size: 60 cm (24")
Display alphatronics wide angle 178/ 178 degree: LED display
Image format: 16:9 widescreen
Resolution: 1920 x 1080
Contrast ratio: 1000:1
Brightness value: 350 cd/m2
Response time: < 5 ms
Viewing angle: 178 H, 178 V
Tuner
PAL B/G, NTSC, SECAM
Triple tuner (DVB-S2, DVB-T2, H.265, DVB-C tuner - HDTV MPEG2/4)
Integrated quality level display (DVB-S2)
CI+ slot (Common Interface)
Electronic Programme Guide (EPG)
Favourites list
Parental control
Sound
Music output / Watt: 2x5 W
Integrated front speakers
Stereo sound
alphatronicsAUDIO+
alphatronicsSound
Bluetooth 5.0 module integrated
Pairing via OSD menu
Connections: TV tuner, 2x HDMI connection, AV in / AV out, Headphones (3.5 mm), YPbPR connection (3.5 mm), Digital Coaxial Out, RJ45 External WiFi antenna, 10.8 - 26 V DC Power supply, External power supply 100 - 240 V AC, 12 DC PhotoViewer: USB 2.0 connection / Media Player (PVR function can be retrofitted) DLNA/Miracast
DLNA/Miracast (PVR function can be retrofitted)
DVD player
DVD player integrated on the side
Formats: CD, DVD, VCD, MP3, DVD-R, DVD-RW, DivX, JPEG
Smart TV
Android 9.0 operating system
Netrange
LAN/WLAN connection
Kathrein control: yes, (option only models -K)
Equipment
Automatic station search memory
Max. TV programme positions: 999
Teletext TOP (100 pages)
Picture modes - number: 4
Sound modes - number: 5
Sleep timer
Graphic OSD menu (multilingual)
General
Power consumption: Operation < 22 W (max.), stand-by < 0.5 W
Weight: with base 4.2 kg, without base 3.9 kg
Dimensions (W x H x D in mm): with / w.o base: 552 x 370 x 154 / 552 x 340 x 54
Housing colour: brushed anthracite
HD Ready: yes
VESA standard: 100 x 100 mm
Energy efficiency class: F
On/off switch
Accessories: Remote control, DVB-T antenna AN5, power supply, YbPr adapter, AV adapter, car 12-volt cable, batteries, operating instructions
| Product data | |
|---|---|
|
Brand
|
Alphatronics |
